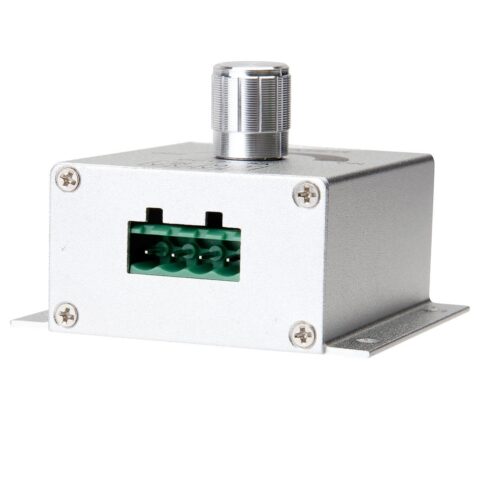

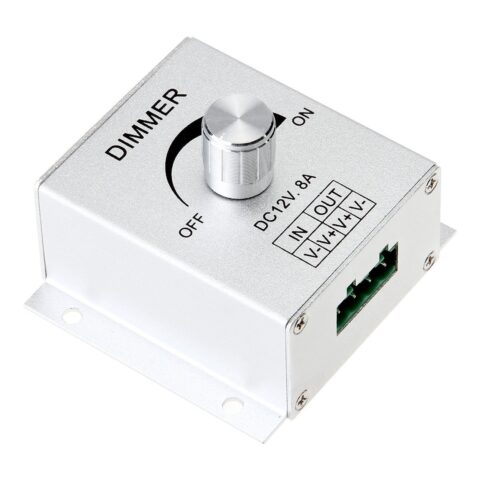

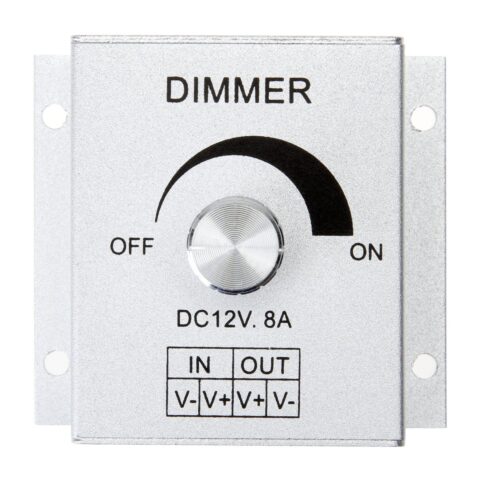

8A Single Color LED Dimmer
  • 8A Single Color LED Dimmer
  • 8A Single Color LED Dimmer
  • 8A Single Color LED Dimmer
  • 8A Single Color LED Dimmer
  • 8A Single Color LED Dimmer

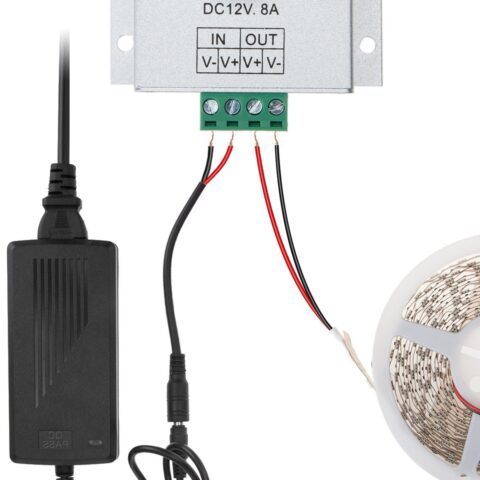

single color LED dimmer. Can dim any 12VDC or 24VDC LED product from 0%-100% using a Pulse Width Modulation(PWM) circuit knob control. Has screw terminal connect for power in and out connections and has a maximum load of 8 Amps.

Specifications:
Supply Voltage: DC 12~24V
Product size: (L)89x(W)59x(H)35mm
Max load current: 8 Amps
Net Weight: 85g
Output 1 channel Working
temperature: -20~60°C
Static power consumption: < 1 Watt
Output Power: 96 Watts
Function: Dim LED product from 0~100% using PWM

Weight 0.15 kg
Dimensions 6 × 6 × 5 cm
